Quick Install MDF Board and Batten Panels, Trim Wall Molding Kits

Quick Install MDF Board and Batten Panels, Trim Wall Molding Kits, Easy DIY Solution W:75mm x T:8mm. The Board and Batten Vertical Kit lines a wall with evenly spaced upright battens for a clean, modern farmhouse look. Every piece is Pre-Cut Paintable MDF in the standard kit. Prime the cut edges first, then paint the wall and battens together for a seamless finish.

This pre-cut board and batten gives a flat wall real architectural depth without the measuring, cutting and mitering a trim project usually involves. The pieces arrive pre-cut and ready to position, so the work on site is adhesive, filler and paint rather than a chop saw and a weekend of dust.

It ships as ready to assemble wall panels: numbered parts, a printed layout reference and corners already mitered. That is what separates a real wall molding kit from a bundle of raw lengths you still have to measure and cut down yourself.

What is in the kit

• MDF profile with factory-mitered corners
• Raw, sanded MDF: prime the cut edges before your top coat

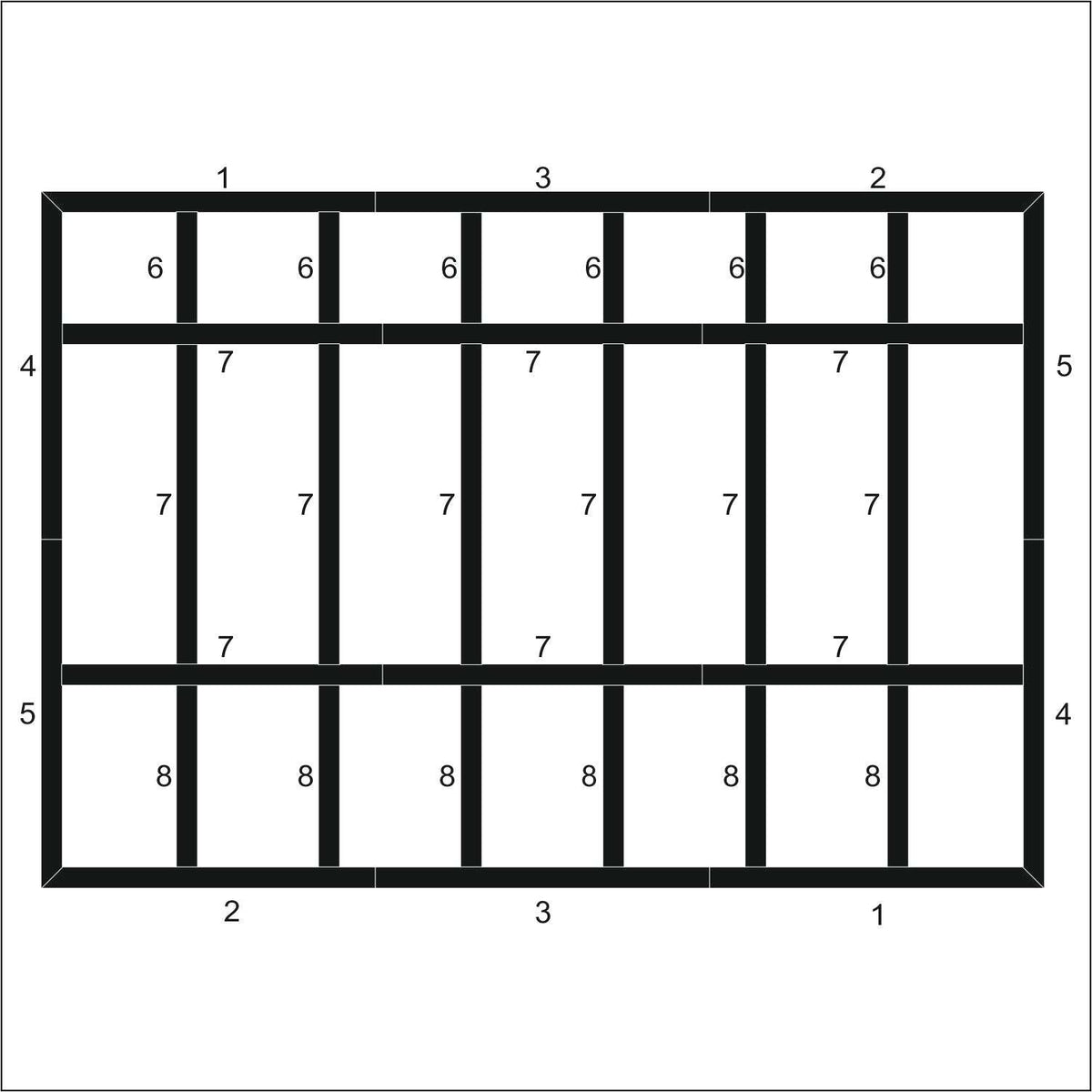

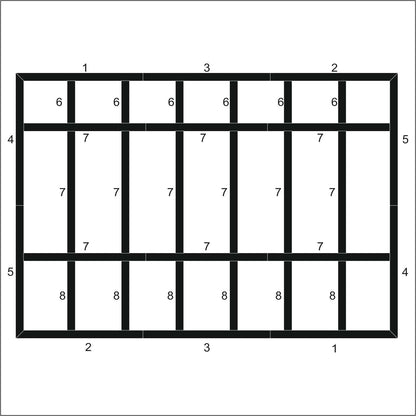

• Numbered pieces and a printed layout reference

How it goes up

1. Wipe the wall clean and mark the layout for each frame.
2. Run construction adhesive along the back of each piece.
3. Press into place from the top rail down, taping or pinning until the adhesive cures.
4. Fill the joints, caulk the edges, sand lightly and paint.

Sizing it to your wall

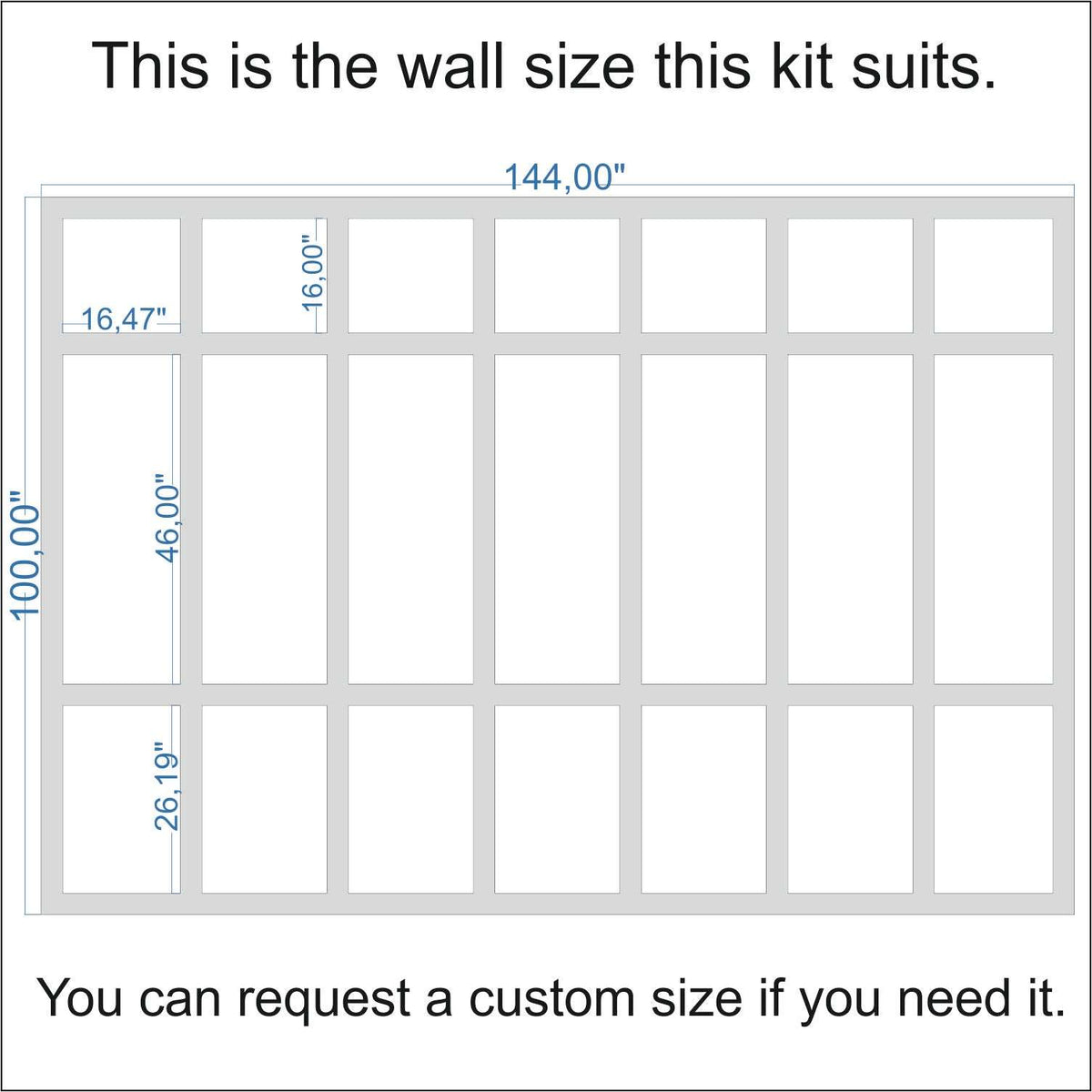

Getting the spacing right is the whole job. Measure the wall width and the height between the baseboard and the ceiling or crown, then run those numbers through our free wall panel calculator. It answers how to measure a wall for panel molding and how to calculate wall panel spacing in one step, and returns the frame sizes and the clear gaps between them.

• Measure wall width and usable height, excluding baseboard and crown
• Decide how many frames you want across the wall
• Let the calculator set the margins and gaps so the run stays even corner to corner
• Order the kit whose layout matches the result

Why MDF

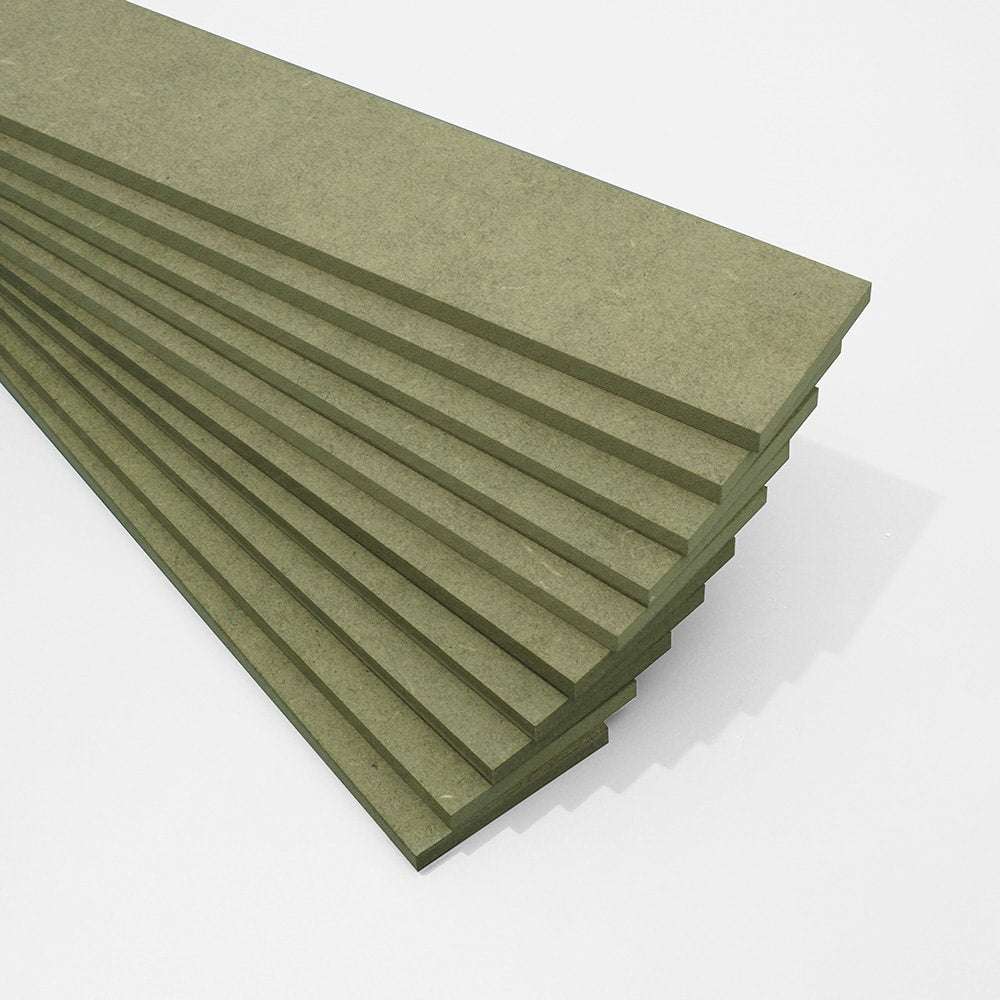

MDF gives a smooth, knot-free face that takes paint evenly, which is why it is the standard for painted mdf wall panels. Prime the cut edges first: raw MDF edges drink paint and will look patchy otherwise.

Where it works

Suited to living rooms, bedrooms, dining rooms, hallways and any flat, dry interior wall. Works as a full-height feature wall or as half wall paneling under a chair rail. Not intended for outdoor use, bathrooms with standing moisture, or walls with an ongoing damp problem.
