Molding Bedroom Wall: Layouts Sized to Your Bed

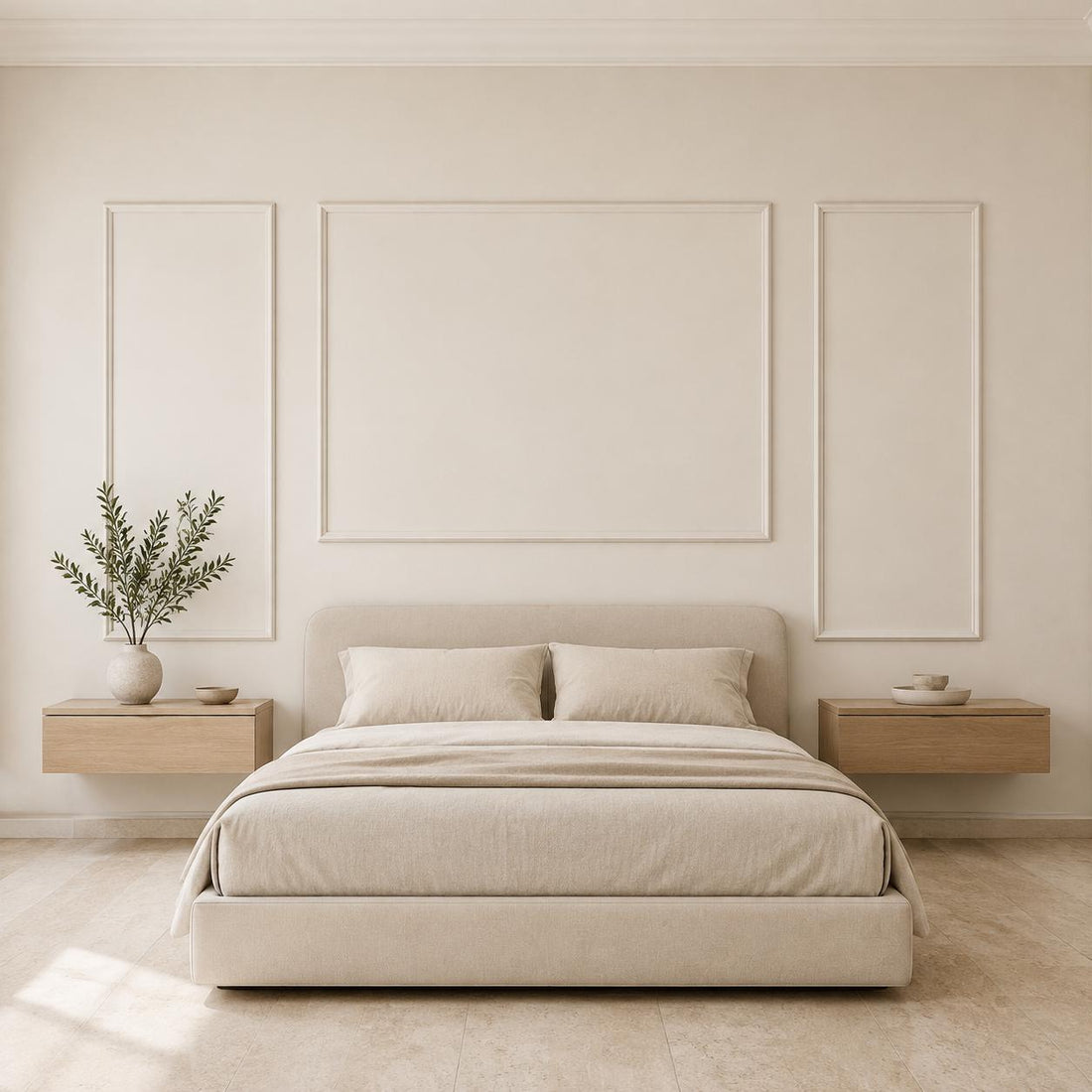

The best molding bedroom wall starts from the bed, not the wall: size the center frame to the headboard, then let the side frames sit over the nightstands. On a 12 ft wall with a queen bed, that works out to one 66 in (168 cm) center frame and two 31 in (79 cm) side frames with 4 in (10 cm) spacing.
Most bedroom wall molding ideas show a finished photo and stop there, which is why so many headboard walls end up with a frame line cutting right through the middle of the bed. You already know a framed wall makes a bedroom feel finished. This guide gives you the layout formula built around standard mattress widths, a precomputed table for queen and king beds on 10 to 14 ft walls, and the kits that match. Our molding bedroom wall kit with three frames is the layout this formula is built on. If you want trim that sticks on rather than nails on, see the Board and Batten Wall Trim.
Quick answer: Make the center frame 6 in (15 cm) wider than the mattress on each side: 66 in for a queen (60 in) and 82 in for a king (76 in). Split the rest of the wall into two equal side frames with the same 4 in gaps and margins. Bedroom kits cost about $187 to $240.
Key takeaways
- Center frame width = mattress width + 12 in: 66 in for a queen (60 in), 82 in for a king (76 in) and 84 in for a California king (72 in).
- On a 12 ft wall, a queen layout leaves 31 in side frames; a king leaves 23 in side frames, which read as narrow panels.
- Keep every gap and margin the same number, 4 in (10 cm) works on most 10 to 14 ft walls.
- Bedrooms are dry rooms, so both peel-and-stick polystyrene and MDF kits are suitable.
- Our Queen and King size board-and-batten trim sets are pre-planned around bed widths, $174.41 to $193.58.
Molding bedroom wall layout: how do you plan it behind the bed?
Center the layout on the bed, not on the wall, and make the middle frame wider than the mattress so the headboard sits inside it with room to breathe. Then divide the remaining width into two equal side frames that line up over the nightstands. One spacing number for every gap and margin keeps it calm.
The three standard US mattress widths do most of the work. A queen is 60 in (152 cm) wide, a king 76 in (193 cm), a full 54 in (137 cm) and a California king 72 in (183 cm). Headboards are usually a little wider than the mattress, so measure yours and use it if it is more than 12 in wider.
The formula, with m as your margin and gap:
- Center frame width C = mattress width + 12 in (30 cm).
- Space left = wall width, C - 4 x m (two end margins, two gaps).
- Each side frame = space left / 2.
- Check that each side frame is at least 18 in (46 cm) wide. Narrower side frames look like slivers; drop them and use one wide center frame instead.
Worked example: a 12 ft bedroom wall with a queen bed
On a 144 in (366 cm) wall with a queen bed and 4 in (10.2 cm) margins, the center frame is 66 in (168 cm) and each side frame is 31 in (79 cm). The side frames then sit over the nightstands on both sides, which is why this layout looks custom rather than applied. The Picture Frame Molding Kit, 3 Upper & 3 Bottom Nested Frames is a pre-cut, self-adhesive kit that can be painted to match the wall.
- Wall width 144 in. Mattress 60 in.
- Center frame: 60 + 12 = 66 in (167.6 cm).
- Space left: 144 - 66 - (4 x 4) = 62 in.
- Each side frame: 62 / 2 = 31 in (78.7 cm).
- Height: with an 8 ft (96 in) ceiling and a 4 in baseboard, usable height is 92 in. Minus 4 in top and bottom margins, each frame is 84 in (213 cm) tall.
- Molding needed: center frame 2 x (66 + 84) = 300 in; each side frame 2 x (31 + 84) = 230 in. Total 760 in, about 63 ft (19.3 m), with 12 mitered corners.
| Wall width | Queen: center / sides | King: center / sides |
|---|---|---|
| 10 ft (120 in, 305 cm) | 66 in / 19 in each | 82 in / 11 in, use one frame |
| 11 ft (132 in, 335 cm) | 66 in / 25 in each | 82 in / 17 in, borderline |
| 12 ft (144 in, 366 cm) | 66 in / 31 in each | 82 in / 23 in each |
| 13 ft (156 in, 396 cm) | 66 in / 37 in each | 82 in / 29 in each |
| 14 ft (168 in, 427 cm) | 66 in / 43 in each | 82 in / 35 in each |
All values use 4 in (10.2 cm) margins and gaps. If a side frame lands under 18 in, switch to a single wide frame centered on the bed, or a grid of smaller boxes above a chair rail.
Which bedroom wall molding style fits your room?
Choose the style by how much of the wall the bed hides. Tall full-height frames suit 8 to 9 ft walls where the headboard covers only the lower third. An upper and lower split with a chair rail suits low headboards. A board-and-batten grid behind the bed works when you want texture rather than frames. For a no-saw, no-nail route, the Half Wall Wainscoting Kit with 4 cm Chair Rail comes pre-cut and self-adhesive.
| Your bedroom | Style that works | Why |
|---|---|---|
| Tall upholstered headboard | Three tall frames, layout above | The headboard sits inside the center frame like a picture |
| Low or no headboard | Upper and lower frames with a chair rail at 1/3 of wall height, 32 in on an 8 ft wall | The lower frames act as the headboard |
| Renting | Self-adhesive polystyrene frames | No nails, no saw; check removal terms with your landlord |
| Small bedroom, bed on the long wall | 1 in (2.5 cm) profile, tone-on-tone | Fine lines keep a small room light |
| Primary bedroom, 9 ft ceiling | 1.6 in (4 cm) profile or nested frames | Heavier lines hold their own on a tall wall |
Caveat: if the bed wall has a window, the frames must work around the window first and the bed second. Center the side frames on the wall space beside the window, not on the nightstands.
How to install bedroom wall molding in a weekend
One headboard wall is a weekend job for one person: about half a day to mark and install a pre-cut kit, an overnight cure, then filling, caulking and two coats of paint on day two. Pull the bed away from the wall first; working around it is where most frames end up crooked.
- Move the bed and nightstands out at least 3 ft (1 m).
- Mark the bed's center line on the wall, then the center frame edges from it.
- Tape the full layout with painter's tape and push the bed back for a look before gluing.
- Install the center frame first, then the side frames, leveling each top rail.
- Fill joints, caulk edges, wait for the caulk to be paint-ready, then paint wall and frames together.
Pro tips
- Plan wall sconces before the molding: mark the junction boxes inside the side frames, centered left to right, so the light sits framed rather than straddling a rail.
- Keep outlets behind the nightstands in the gap between frames when you can; drop the gap to the outlet side rather than cutting a frame.
- If your headboard is wider than the mattress by more than 12 in, use headboard width + 8 in for the center frame instead.
- Paint the headboard wall a shade darker than the other three walls, frames included, to make the bed the focal point without contrast trim.
- For a king bed on an 11 ft wall, skip side frames and run one 82 in center frame with wide margins; it looks deliberate.
- Choose the self-adhesive version in a child's room you will redo in a few years.
Common mistakes with bedroom wall molding
- Centering on the wall when the bed is off center. The frame line then runs behind one pillow. Fix: center on the bed.
- Center frame the same width as the mattress. The headboard edges hide the frame and it looks accidental. Fix: mattress width + 12 in.
- Sliver side frames. 11 in panels beside a king bed look like a mistake. Fix: one wide frame below 18 in side frames.
- Forgetting the sconces. Running wires after the frames are up means cutting molding. Fix: place boxes first.
Shop the look
- Peel and Stick Board and Batten Trim Set: separate Queen Size and King Size layouts, $174.41 to $193.58.
- Bedroom Wall Molding Kit, 2 Side and 1 Middle Frame: the center-plus-sides layout from this guide, $240, self-adhesive option $242.
- Renter Friendly Peel and Stick Wall Panels, 3 Frames: no nails, factory primed, from $75.
Frequently asked questions
What molding is best for a bedroom wall?
Picture frame molding in a simple profile is the most versatile, painted the wall color. Use 1 in (2.5 cm) profiles on 8 ft walls and 1.6 in (4 cm) on 9 ft and taller walls.
Should bedroom wall molding go behind the bed?
Yes, the bed wall is the natural focal point. Size the center frame to the bed so the headboard sits inside it rather than across a frame line.
How high should molding be in a bedroom?
Full-height frames start about 4 in above the baseboard and stop about 4 in below the ceiling. A chair rail, if used, sits at about one third of the wall height, 32 in on an 8 ft wall.
Is peel and stick molding good for bedrooms?
Bedrooms are dry and stable, which suits peel-and-stick polystyrene well. Install on clean, sound paint and press every piece firmly along its length.
What color should bedroom wall molding be?
The same color as the wall for a calm, built-in look. Deep colors such as navy, olive or charcoal work well tone-on-tone because the frame shadows still show.
More room-by-room layouts are in our wall molding ideas by room. Ready to choose? Browse all Accent Wall Molding Kits kits, or plan your wall with live pricing in our Wall Designer.
Last updated: October 7, 2026
