DIY Picture Frame Molding: Cut Miters That Close
DIY picture frame molding means cutting your own frames from raw lengths: four pieces per frame, each end mitered at 45 degrees, measured to the long point so the outer edge equals the frame size. The two things that decide the result are identical lengths for opposite sides (use a stop block) and an accurate saw angle, because wider profiles show the same angle error as a bigger gap.
DIY tutorials cover the steps well: plan, cut, nail, caulk, paint. What they leave out is what to do when the corners do not close, and how accurate the saw has to be for your profile. This guide gives the corner-gap math, a cutting order that saves material, a test-frame routine and a fair comparison with buying the same frames pre-cut, like our diy picture frame molding kit with factory miters.
Quick answer: Cut opposite sides with one stop-block setting so they are identical, measure to the long point of the miter, and test the saw on a scrap frame first. A 1 degree error at a joint opens a 0.017 in gap on 1 in molding but 0.044 in on 2.5 in molding, which is visible after paint.
Key takeaways
- Measure and cut to the long point: the outer edge of each piece equals the frame's outer size.
- Opposite sides must match exactly; a stop block guarantees it, a tape measure does not.
- Gap = profile width x tan(angle error); the same saw error looks 2.5 times worse on 2.5 in molding than on 1 in.
- Gaps up to about 1/32 in disappear under filler and paint; larger gaps need a recut.
- Cut the longest pieces first from full sticks, then the short ones from offcuts.
How do you cut picture frame molding accurately?
Set the saw to 45 degrees, cut one end of every piece, then set a stop block at the frame length and cut all pieces of that length in a row. Measure to the long point, the outer tip of the miter. Cutting identical pairs matters more than hitting the exact length.
- Write a cut list grouped by length: all 55.1 in pieces, all 41.3 in pieces, all 17.7 in pieces.
- Miter one end of each stick, face up, profile against the fence.
- Clamp a stop block at the long-point length; cut every piece of that length against it.
- Move the block for the next length; never re-measure piece by piece.
- Label each piece on the back with frame number and position.
A fine-tooth blade gives cleaner miters on MDF and primed pine. Finger-jointed stock can chip where the blade crosses a glue joint, a problem several DIY writers mention, for example this tutorial.
Why do my DIY picture frame molding corners have gaps?
Corner gaps come from three causes: an angle that is not exactly 45 degrees, opposite sides of different lengths, or a wall that pushes the frame out of plane. Angle errors open the joint on one side of the profile; length errors leave one corner open while the others close.
| Angle error at the joint | Gap on 1 in molding | Gap on 1.6 in molding | Gap on 2.5 in molding |
|---|---|---|---|
| 0.5 degree | 0.009 in | 0.014 in | 0.022 in |
| 1 degree | 0.017 in | 0.028 in | 0.044 in |
| 2 degrees | 0.035 in | 0.056 in | 0.087 in |
Gap = profile width x tan(error). Around 1/32 in (0.031 in) is the most filler and paint will hide cleanly, so a 2.5 in profile tolerates under 1 degree of total error per joint, while 1 in molding forgives nearly 2 degrees. That is why wide moldings feel unforgiving to first-timers.
- Gap open at one end of the miter: the angle is off; cut a test pair at 45 and at 44.5 degrees and keep whichever closes.
- One corner open, three tight: one side is long or short; recut it against the stop block.
- Joint steps out of plane: the wall bows; press the joint flat and hold it with a pin while glue sets.
Worked example: cutting a four-frame wall from raw sticks

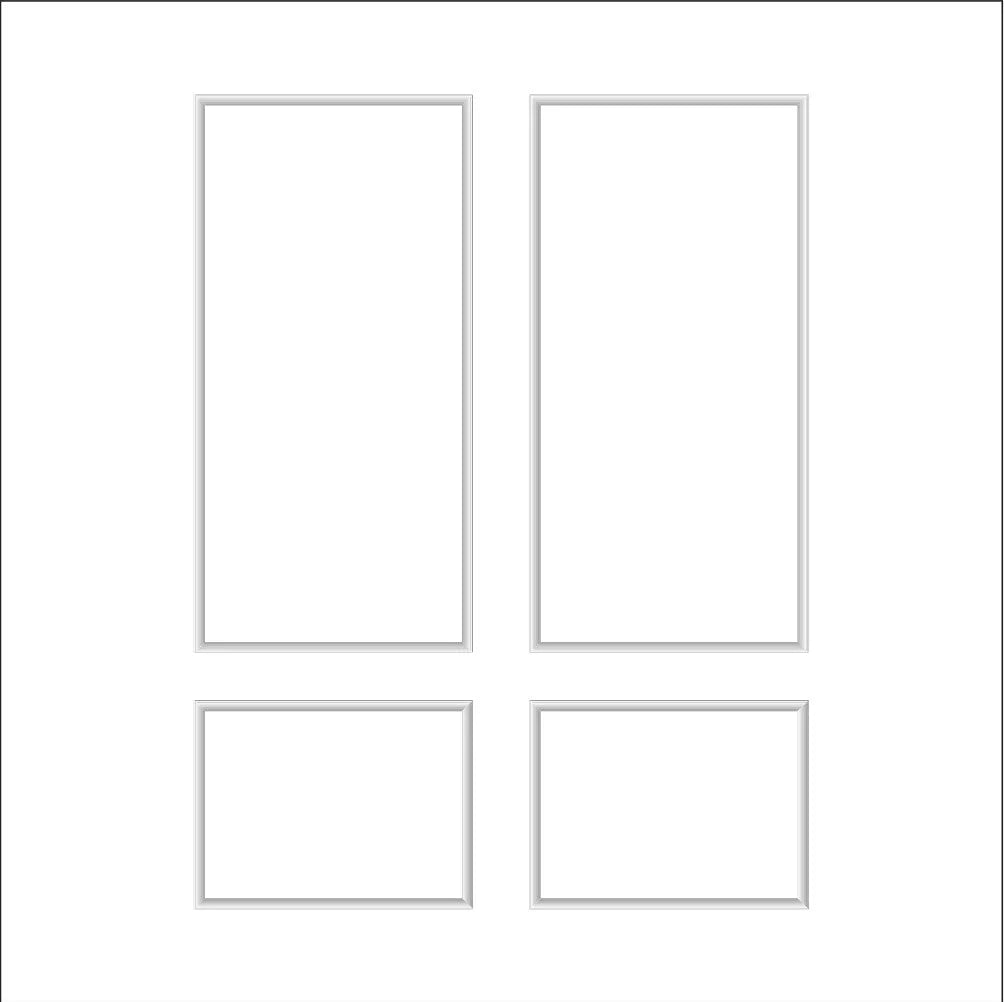

Two upper frames of 41.3 x 55.1 in and two lower frames of 41.3 x 17.7 in need 16 pieces and 32 miter cuts. Cut longest first: the four 55.1 in sides each take a stick and leave 40.9 in, too short for a 41.3 in rail but enough for a 17.7 in side.
- Pieces: 4 at 55.1 in, 8 at 41.3 in, 4 at 17.7 in, 51.8 ft in total.
- Sticks 1 to 4: one 55.1 in side plus one 17.7 in side each.
- Sticks 5 to 8: two 41.3 in rails each.
- Result: 8 sticks of 8 ft (64 ft bought for 51.8 ft used), 32 miters, 3 stop-block settings.
- Test frame: before cutting the real pieces, cut four 12 in pieces from an offcut and dry-fit a small frame on the floor.
- Pre-cut alternative: the same four frames come as numbered pieces with factory miters; our 2 upper and 2 bottom kit is $75 to $302 depending on frame set and profile.
DIY picture frame molding or a pre-cut kit?
Cut your own if you own a good miter saw, enjoy the process and use a narrow profile. Buy pre-cut if you have no saw, want the wider 1.6 in profile, or have many frames to make, because every frame adds eight miters that must close.
| Factor | Cut your own | Pre-cut kit |
|---|---|---|
| Tools | Miter saw, clamps, stop block, nailer | Level, caulk gun |
| Cuts for 6 frames | 48 miters | None |
| Waste | About 20 to 25 percent on frame walls | None |
| Wide profile accuracy | Under 1 degree per joint needed at 2.5 in | Factory cut |
| Material choice | Any wood or MDF profile | Our 25 x 13 mm or 40 x 20 mm polystyrene |
Pro tips
- Cut a hair long and shave to the stop block; you can remove 1/32 in but not add it.
- Support long sticks level with the saw table on both sides; a drooping stick changes the angle.
- Let the blade reach full speed before cutting and lift it out after it stops, to avoid chipping the tip.
- Glue the miter faces with a little wood glue on MDF frames; corners stay closed as seasons change.
- Assemble each frame on the floor first, then lift it to the wall, if the frame is small enough to handle.
- Fill corners with lightweight filler slightly proud and sand flush; caulk is for edges against the wall, not miters.
Common mistakes with DIY picture frame molding
- Measuring to the short point. Every frame comes out two profile widths small. Fix: long point.
- Measuring each piece separately. Opposite sides differ. Fix: stop block per length.
- Cutting short pieces first. Long pieces then do not fit offcuts. Fix: longest first.
- Choosing a wide profile for a first project. Fix: start with 1 in molding or a pre-cut kit.
Shop the look
- Ready to Assemble Wall Molding Package: a full wall of pre-mitered frames, $285.72 to $393.43.
- Picture Frame Wall Molding Package: frames by column width, 60 to 120 cm, from $53.
- Double Wall Molding Kit: nested frames that would mean 16 miters per box if cut by hand, from $60.
Frequently asked questions
What molding is best for DIY picture frame molding?
Primed MDF or poplar panel molding around 1 to 1.5 in wide is easiest to cut cleanly. Finger-jointed pine can chip at the glue joints.
Can you do picture frame molding without a miter saw?
With a hand miter box for a few frames, yes, but accuracy suffers on wide profiles. Pre-cut kits remove the saw entirely.
How do you fix gaps in picture frame molding corners?
Gaps up to about 1/32 in: filler, sand, paint. Larger: recut the piece with the corrected angle or length; filler shrinks and cracks in wide gaps.
How much space between picture frame molding boxes?
Usually 3 to 4 in, the same between boxes, at the ends and above the baseboard, so the grid reads evenly.
Is DIY picture frame molding cheaper than a kit?
The material is cheaper if you own the tools. Once waste, tool rental and recuts are counted, pre-cut kits often land close.
