DIY Panel Wall: Bay Formula, Cut List and Board Count
A DIY panel wall is a grid of flat boards (a top rail plus vertical stiles) glued and nailed onto drywall, then caulked and painted so the gaps read as recessed panels. A half-height version on a 12 ft wall takes five 8 ft boards, seven square cuts and no miters, which makes it the friendliest trim project to build from raw lumber.

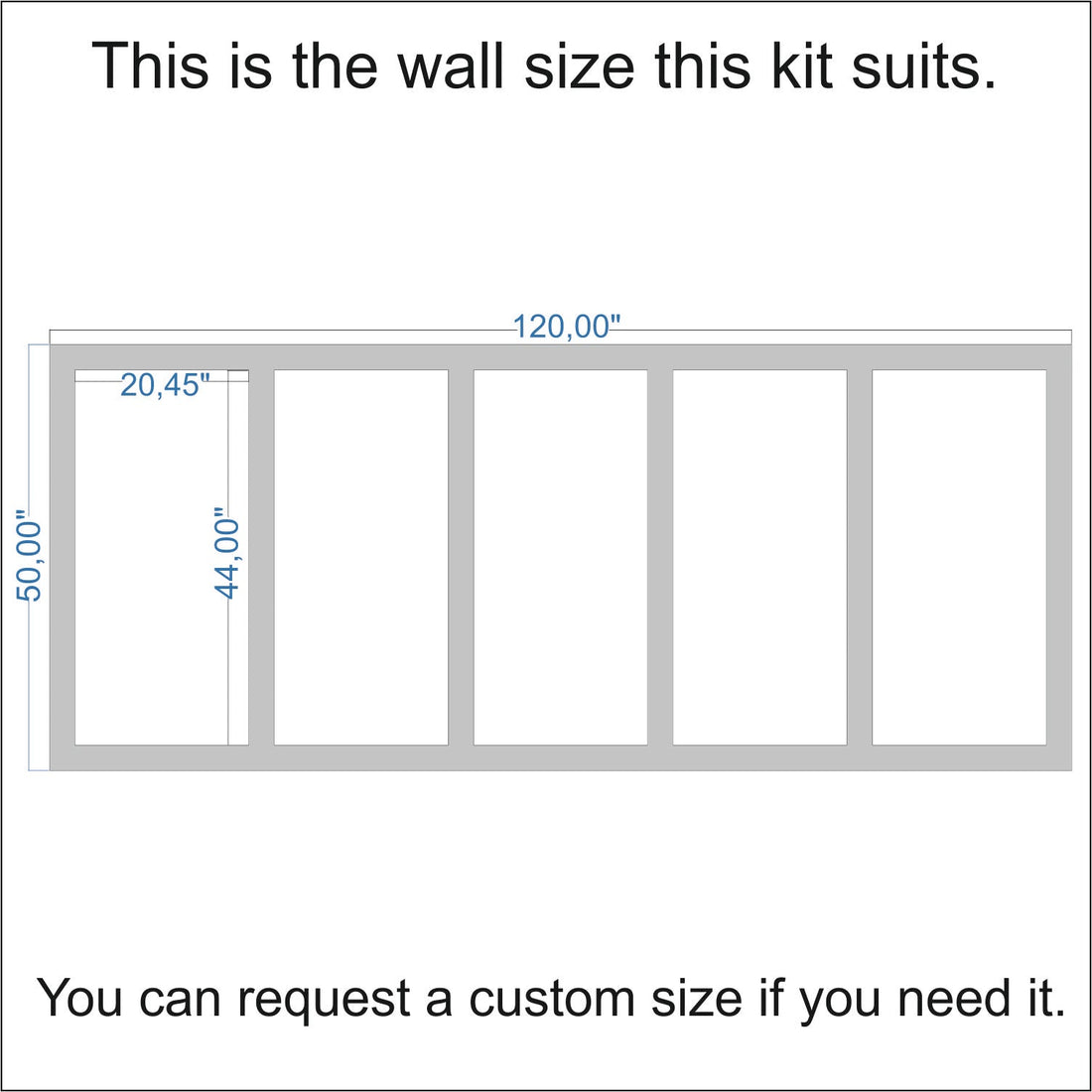

Most DIY panel wall ideas show the finished shaker look and a shopping list. What they skip is the arithmetic: how wide each bay should be, how many boards to buy so you do not run short on a Sunday, and when a pre-cut kit beats a pile of MDF strips. This guide gives the bay formula, a board-count table for 8 to 16 ft walls, a worked example and an honest comparison with our diy panel wall kit with pre-cut 75 mm MDF boards.
Quick answer: Use 3.5 in (89 mm) boards and aim for bays 22 to 30 in wide. Bay width = (wall width minus stiles x 3.5 in) divided by bays. A 12 ft wall takes 5 bays of 24.6 in, 6 stiles and a top rail: 5 boards of 8 ft for a 48 in high panel wall.
Key takeaways
- Shaker-style panel walls use butt joints only, so a raw-board build needs a straight square cut, not a miter saw set to 45 degrees.
- Stiles always number one more than bays; on a 12 ft wall, 5 bays need 6 stiles.
- A 48 in half-height panel wall needs 3 boards on an 8 ft wall, 5 on a 12 ft wall and 6 on a 16 ft wall (8 ft lengths).
- Raw MDF strips must be primed on every cut edge, or the paint finish turns patchy where the fibers soak it up.
- A kit makes sense when you have no saw, or the wall is out of square and you want a drawing to work from.
What is a DIY panel wall, and which style suits raw boards?
A DIY panel wall is applied paneling: boards fixed onto a flat wall to imitate the frame-and-panel construction of old joinery. Shaker and board and batten styles use flat boards with square ends, which makes them ideal for building from raw MDF. Picture frame styles use mitered molding and need precise 45 degree cuts.
| Style | Joints | Cuts per bay | Raw-board difficulty |
|---|---|---|---|
| Vertical board and batten | Butt | 1 | Easiest |
| Shaker (rail and stiles) | Butt | 1 to 2 | Easy |
| Shaker grid (two rails, full height) | Butt | 3 to 4 | Medium, many short pieces |
| Picture frame molding | 45 degree miters | 8 | Hard without practice |
If the look you want is picture frames, a pre-cut kit saves the most effort. If it is shaker, raw boards are realistic for a first project, and a kit is mostly a time and finish decision.
How wide should the panels be? The bay formula
Bay width = (wall width minus number of stiles x board width) divided by number of bays, with stiles = bays + 1. Aim for bays 22 to 30 in (56 to 76 cm) wide with 3.5 in boards. Narrower bays look busy; wider ones look like a fence with missing pickets.
| Wall width | Bays | Stiles | Bay width | 8 ft boards (48 in high) | Square cuts | Linear feet |
|---|---|---|---|---|---|---|
| 8 ft (96 in) | 3 | 4 | 27.3 in (69 cm) | 3 | 4 | 21.5 ft |
| 10 ft (120 in) | 4 | 5 | 25.6 in (65 cm) | 4 | 6 | 26.9 ft |
| 12 ft (144 in) | 5 | 6 | 24.6 in (62 cm) | 5 | 7 | 32.2 ft |
| 14 ft (168 in) | 6 | 7 | 23.9 in (61 cm) | 6 | 8 | 37.6 ft |
| 16 ft (192 in) | 6 | 7 | 27.9 in (71 cm) | 6 | 8 | 39.6 ft |
The table assumes a 4 in baseboard used as the bottom rail, a 3.5 in top rail ending at 48 in, so stiles are 40.5 in long and two fit on one 8 ft board. Add one board for a cap ledge on top of the rail, and one spare board on walls over 12 ft for a split or a bad cut.
Worked example: a DIY panel wall on a 12 ft wall
A 144 in (366 cm) wall with an 8 ft ceiling and a 4 in baseboard gets a 48 in shaker panel wall: one top rail, six stiles and five bays of 24.6 in. The whole cut list fits on five 8 ft boards with one stile left over as a spare.
- Stiles: 5 bays + 1 = 6 stiles, each 48 - 4 - 3.5 = 40.5 in (103 cm) long.
- Bay width: (144 - 6 x 3.5) / 5 = 123 / 5 = 24.6 in (62.5 cm).
- Stile positions (left edges from the corner): 0, 28.1, 56.2, 84.3, 112.4 and 140.5 in.
- Top rail: 144 in = one full 96 in board + a 48 in piece, joined over a stile with a 45 degree scarf so the seam hides under paint.
- Boards: board 1 = rail; board 2 = 48 in rail + 1 stile; boards 3 and 4 = 2 stiles each; board 5 = the last stile plus room for a spare: 5 boards, 7 square cuts.
- Price it yourself: 5 x your store's price for a primed 8 ft 1x4 MDF board, plus adhesive, brad nails, caulk, filler and primer for the cut ends.
- Outlets: an outlet at 12 to 16 in that lands under a stile must be moved or the stile shifted; check the stile positions above against every plate before cutting.
Want two-thirds height instead? Raise the rail to 64 in and the stiles become 56.5 in, so only one fits per 8 ft board: the 12 ft wall then needs 8 boards, not 5. Height changes the shopping list more than width does.
DIY panel wall from raw boards or a pre-cut kit?
Build from raw boards if you own a saw, the wall is square and you enjoy the cutting. Choose a kit if you have no saw, the corners are out of plumb, or you want a layout drawn to your measurements. The kit cost buys cut pieces, numbering and a plan; the material itself is the same MDF.
| Factor | Raw boards | Pre-cut kit |
|---|---|---|
| Tools | Saw, brad nailer, clamps, sawhorses | Brad nailer or adhesive only |
| Layout | Your own math (formula above) | Numbered pieces, printed layout |
| Edge priming | Every cut end | Raw MDF: still prime edges before paint |
| Waste | Plan 1 spare board per 12 ft | None |
| Our prices | Not applicable | Shaker kit $250; MDF half wall kit with chair rail $163.48 (3 panels) to $326.87 (6 panels) |
Caveat: MDF is the wrong material behind a sink or in a shower room. For a bathroom panel wall, use moisture-resistant polystyrene frames instead.
How to build a DIY panel wall step by step
Work from the top rail down to the stiles, fixing every board with adhesive and brad nails. The rail sets the level reference for everything else, so it must be dead level even if the floor and ceiling are not.
- Paint the wall in the final color first; it saves cutting in around every bay later.
- Snap a level line at the rail's bottom edge (44.5 in in the example) with a laser.
- Glue and nail the rail, then mark stile centers along it using a spacer block cut to the bay width.
- Check each stile with a level on two faces before nailing; glue and nail at an angle so the nails grip.
- Prime all cut ends, fill nail holes, caulk every board-to-wall seam with a thin bead.
- Paint two coats in a satin or eggshell; boards and wall in one color give the classic shaker finish.
Pro tips
- Cut a spacer block exactly the bay width; it is faster and more accurate than measuring each gap with a tape.
- Scribe the end stiles to the corner if the corner is out of plumb; a gap tapering top to bottom is very visible on a narrow end bay.
- Put the rail joint over a stile, never in the middle of a bay.
- Use the existing baseboard as the bottom rail only if it is flat-topped; a rounded or ogee baseboard needs a flat board added on top.
- Plan stile positions around switches before buying: one shifted stile is cheaper than moving a box.
- Buy boards the day before and let them sit in the room so they reach room conditions before cutting.
Common mistakes with a DIY panel wall
- Starting at one corner and running out of wall. The last bay ends up narrow. Fix: calculate bays first and mark all stiles before fixing any.
- Bays under 20 in. The wall looks striped. Fix: drop one bay and widen the rest.
- Unprimed MDF edges. They absorb paint and look fuzzy. Fix: prime cut ends with a shellac or primer suited to MDF.
- Too few boards. Height changes the board count. Fix: use the table, add a spare.
Shop the look
- Half Wall Paneling Kit in MDF: 3 to 6 panels with chair rail, $163.48 to $326.87, or a $31.42 sample panel to test the look.
- Square Panel Wall Molding: a full-height shaker grid in MDF, $270.
- Modern Farmhouse Shaker Wall Panels: raw MDF kit for a farmhouse panel wall, $312.
Frequently asked questions
What boards do you use for a DIY panel wall?
Most builds use primed MDF in 1x3 or 1x4 nominal sizes (2.5 or 3.5 in actual width). MDF is flat, cheap and paints smoothly once the cut edges are primed.
Do you need to nail into studs?
No. Construction adhesive holds the boards; brad nails driven at opposing angles hold them while the glue cures. Studs help but stile positions should follow the design, not the framing.
How high should a panel wall go?
Common heights are about one-third to one-half of the wall, or two-thirds for a modern look. On an 8 ft ceiling, 36 to 48 in for half height and about 64 in for two-thirds.
Can you do a panel wall on a textured wall?
Yes. MDF boards bridge light texture, and caulk fills the small gaps. Heavy knockdown texture should be skimmed or sanded where boards land.
How long does a DIY panel wall take?
Plan one day to cut and fix and a second day to fill, caulk and paint, so each step can dry before the next.
