Chair Rail and Picture Frame Molding: Frame Heights

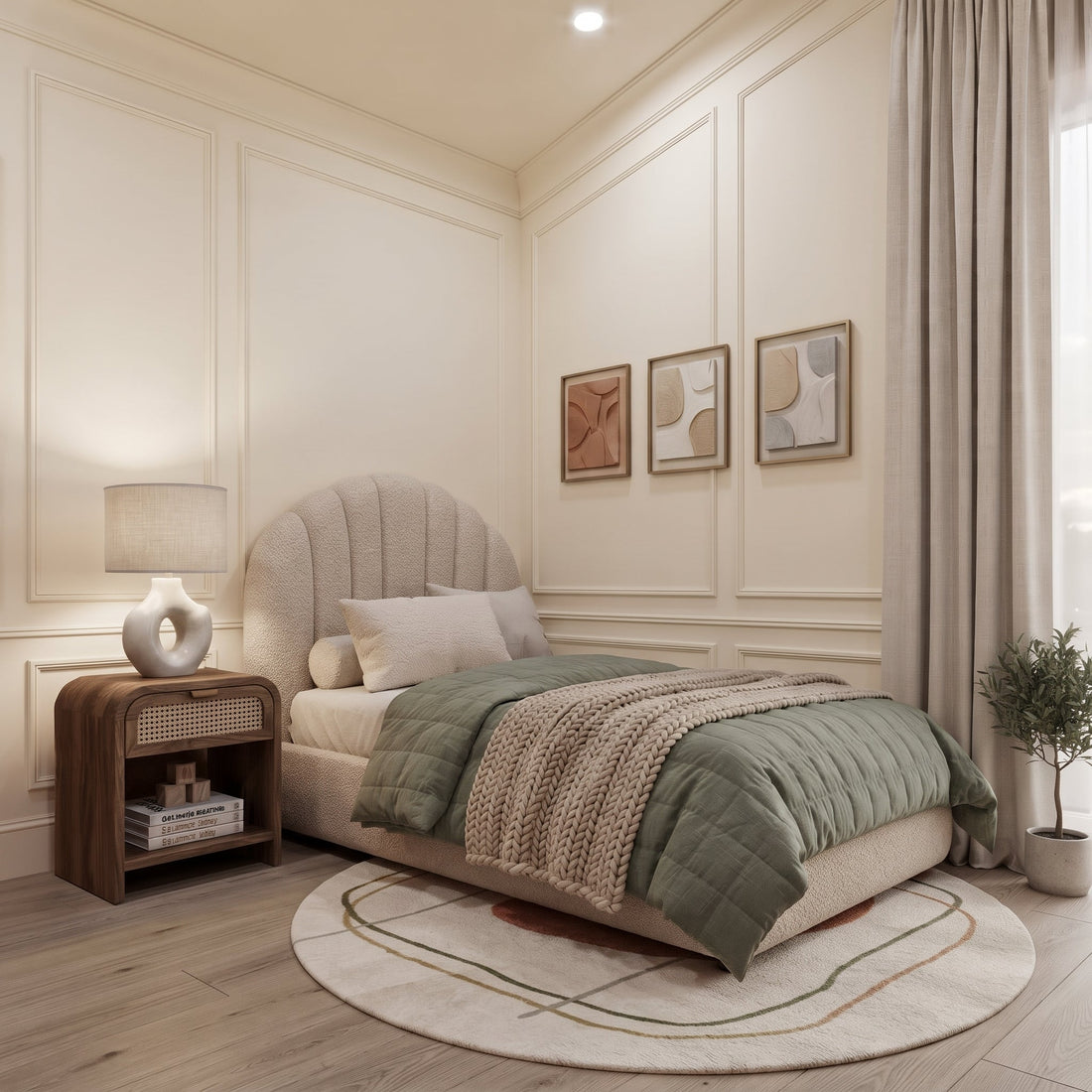

Chair rail and picture frame molding together means a horizontal rail about one-third up the wall, with frames below it and taller frames above it, all spaced by the same gap and lined up in shared columns. On an 8 ft wall with a 32 in rail and 3.5 in gaps, the lower frames come out about 18.6 in tall and the upper frames 57 in.
Guides to this classic layout agree on the basics: rail at a third of the height, 3 to 4 in gaps, keep spacing consistent. What they rarely give is the height of each frame, the rule that keeps upper and lower frames in line, or what to do when an outlet lands on a rail. This guide adds those formulas, a ready table for 8, 9 and 10 ft ceilings and a worked 12 ft wall built from our chair rail and picture frame molding kit, which ships the rail and six frames pre-cut.
Quick answer: Put the chair rail top at one-third of the ceiling height, use one gap (3 to 4 in) everywhere, and stack upper and lower frames in the same columns. Lower frame height = rail bottom, baseboard top - 2 gaps; upper = ceiling, rail top - 2 gaps. On 8 ft that is 18.6 in and 57 in.
Key takeaways
- Upper and lower frames should share the same left and right edges; offset columns are the most common layout error.
- With a 2.4 in rail and 3.5 in gaps, lower frames are 18.6 in tall on 8 ft ceilings, 22.6 in on 9 ft and 26.6 in on 10 ft.
- Upper frames are 57, 65 and 73 in tall on the same three ceilings when there is no crown molding.
- A 12 ft wall with 3 columns needs about 81 ft of frame molding plus 12 ft of rail.
- Our 3 upper, 3 bottom kit with chair rail costs $165 in the 1 in profile and $195 in 1.6 in.
How high should the chair rail be with picture frame molding?
Place the top of the chair rail at about one-third of the ceiling height: 32 in for 8 ft, 36 in for 9 ft, 40 in for 10 ft. The frames then split the wall into a short lower band and a tall upper field, the proportion of traditional paneled rooms. Adjust by an inch or two to avoid cutting a window stool or switch.
In dining rooms, check chair backs too: a rail a little above the chair back height protects the wall where chairs are pushed back. Our chair rail molding guide covers rail heights in more detail.
Chair rail and picture frame molding: frame heights by ceiling
Frame heights follow from three numbers: baseboard height, rail position and the gap. Using a 4 in baseboard, a 2.4 in (6 cm) rail at one-third height and a 3.5 in gap on all sides, the table gives the outer frame height for each tier, before you adjust for crown or a wider gap.
| Ceiling | Rail top | Rail bottom | Lower frame height | Upper frame height (no crown) | Upper with 4 in crown |
|---|---|---|---|---|---|
| 8 ft (96 in) | 32 in | 29.6 in | 18.6 in (47 cm) | 57 in (145 cm) | 53 in (135 cm) |
| 9 ft (108 in) | 36 in | 33.6 in | 22.6 in (57 cm) | 65 in (165 cm) | 61 in (155 cm) |
| 10 ft (120 in) | 40 in | 37.6 in | 26.6 in (68 cm) | 73 in (185 cm) | 69 in (175 cm) |
Formulas: lower = rail bottom: baseboard top - 2 x gap; upper = ceiling (or crown bottom) - rail top - 2 x gap. With a 1.6 in (4 cm) rail, add 0.8 in to the lower frame height.
Should upper and lower frames line up?
Yes. Give upper and lower frames identical widths and the same column positions, so each vertical edge runs through the rail in one line. The rail then reads as a band across a single grid. Offset or different-width frames above and below make the wall look assembled from two kits.
Two variants also work, as long as the edges still line up:
- Two lower frames under one upper frame, with the lower gap centered under the upper frame's middle.
- No upper frames at all: a rail with lower frames only is classic wainscoting.
Worked example: a 12 ft dining room wall
A 144 in wall with an 8 ft ceiling, a 4 in baseboard and no crown takes three columns of 43.3 in frames with 3.5 in gaps. Lower frames are 43.3 x 18.6 in, upper frames 43.3 x 57 in, and the rail runs the full 12 ft at 29.6 to 32 in.
- Column width: (144 - 4 gaps x 3.5) / 3 = 130 / 3 = 43.3 in (110 cm).
- Lower frames: from 7.5 in (4 + 3.5) up to 26.1 in (29.6 - 3.5), so 18.6 in tall.
- Upper frames: from 35.5 in (32 + 3.5) up to 92.5 in (96 - 3.5), so 57 in tall.
- Frame molding: 3 x 2 x (43.3 + 57) + 3 x 2 x (43.3 + 18.6) = 601.8 + 371.4 = 973.2 in = 81.1 ft, plus 12 ft of rail.
- Outlet check: a receptacle centered at 12 in has a 4.5 in tall plate from 9.75 to 14.25 in, clear of the lower frame's bottom rail at 7.5 to 8.5 in.
- Switch check: a switch at 48 in sits inside an upper frame; keep its plate at least 1 in from any frame side.
- Kit: 3 upper, 3 bottom frames and rail, $165 in 1 in molding or $195 in 1.6 in; we cut to your wall size on request.
How to install chair rail and picture frame molding
Install the rail first, because every frame is measured from it. Then fix the upper frames from the rail up and the lower frames from the rail down, each with the same gap. Caulk, fill and paint at the end so everything reads as one piece.
- Snap a level line for the rail top with a laser; follow the line, not the floor.
- Glue the rail; at doors, stop it against the casing side.
- Mark the column edges on the rail with a pencil tick at each gap.
- Fix upper frames 3.5 in above the rail, top rail first, using a spacer block.
- Fix lower frames 3.5 in below the rail, checking each against the column marks.
- Caulk, fill corners and paint in one color for a built-in look, or rail and frames in trim white.
Pro tips
- Cut one spacer block to the gap size and use it for every gap, including the rail-to-frame gaps.
- Run a plumb laser line down each column edge; it catches a lower frame drifting off its column.
- If the room has crown molding, measure the upper frame height from the crown's bottom edge, not the ceiling.
- Paint the lower band a deeper shade than the upper field for a two-tone dining room that still shares one grid.
- On walls with a window, start the column layout from the window edges, not from the corners.
- Return the rail ends into the wall at outside corners rather than leaving a cut end exposed.
Common mistakes with chair rail and picture frame molding
- Different gap sizes above and below the rail. Fix: one gap everywhere, as in the formulas.
- Upper and lower frames of different widths. Fix: share columns; edges in one line.
- Rail set from the floor with a tape. Floors slope. Fix: level line from a laser.
- Square lower frames. With 18 in height they should be wide rectangles; add columns rather than shrinking widths too far.
Shop the look
- Half Wall Wainscoting Kit with 6 cm Chair Rail: the lower tier and rail only, 1 to 6 panels from $39.41.
- French Wall Molding Paneling Kit: French-style frame sets for the upper field, from $189.70.
- Picture Frame Wainscoting Kit: add single panels to extend a run, from $51.25.
Frequently asked questions
How far should picture frame molding be from the chair rail?
Use the same gap you use between frames, typically 3 to 4 in. Our worked example uses 3.5 in above and below the rail.
Do you need chair rail with picture frame molding?
No. Full-height frames without a rail are common in modern and French rooms. The rail adds a horizontal break and protects the wall in dining rooms.
What is the difference between chair rail and wainscoting?
The chair rail is the horizontal strip. Wainscoting is the treatment below it, here the lower picture frames, together with the rail on top.
Should chair rail be the same color as the frames?
For a built-in look, yes: rail, frames and wall in one color. For a classic look, paint rail and frames in trim white.
How many frames should go above the chair rail?
The same number as below, in the same columns. On a 12 ft wall, three columns of about 43 in work well.
