Applied Molding vs Raised Panel: Proportions That Work

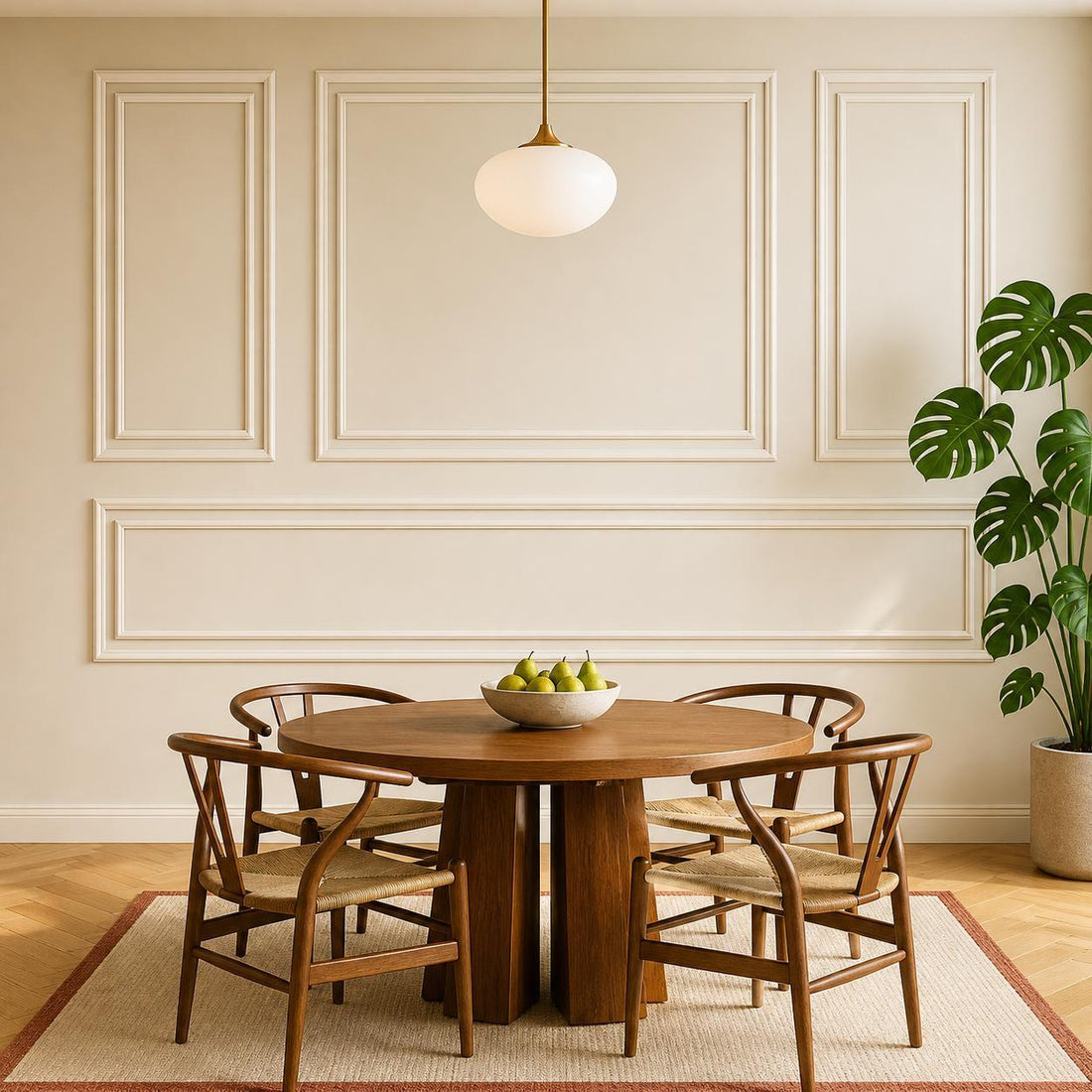

Applied molding is trim fixed onto a flat surface, usually as rectangles, to suggest paneling that is not really there. Raised panel wainscoting is built: a frame of stiles and rails with a separate beveled panel set into it. Applied molding gives most of the look for a small fraction of the build, as long as you copy the proportions of real paneling.

Comparisons of applied molding vs wainscoting usually end at "applied is cheaper, raised panel is more traditional." True, and not very useful. The real question is how to make applied frames look like they belong to the house rather than stuck on. Joiners solved that centuries ago with stile widths and a heavier bottom rail, and the same numbers work for applied trim. This guide covers the difference briefly, then gives those proportions, a worked wainscot and where applied molding is the wrong call. Our applied molding kits are the frames-on-a-flat-wall kind.

Key takeaways

• Applied molding sits on the wall surface; raised and flat panel wainscoting are built frames with separate panels.
• Gaps between applied frames read as stiles, so keep them 3 to 5 in wide, like the stiles of real paneling.
• Traditional frame-and-panel work has a wider bottom rail than top rail; give applied frames a bottom gap about 1.5 times the top gap.
• Applied molding protects the wall less than solid paneling; in high-traffic spots, add a chair rail.
• Applied panels belong indoors; on exteriors, where inset panels were the tradition, they look wrong.

For paintable MDF components that simplify planning a structured wall treatment, explore our MDF Wall Paneling Kits.

Applied molding vs raised panel wainscoting: what is the difference?

Applied molding is a frame of trim on top of a wall that stays visible inside the frame. Raised panel wainscoting replaces the wall surface with joinery: stiles and rails form a frame, and a panel with beveled edges sits in grooves within it. Flat panel wainscoting is the same build with a flat panel.

Feature	Applied molding	Flat panel wainscoting	Raised panel wainscoting
What it is	Frames of trim on the wall	Stiles, rails and flat panels	Stiles, rails and beveled panels
Projection from wall	13 to 20 mm with our profiles	About 3/4 in boards plus cap	Boards plus raised field
Wall inside the frame	Original wall, painted	Covered	Covered
Protects the wall	Only where the trim is	Whole lower wall	Whole lower wall
Skill needed	Low with pre-cut kits	Medium	High; often shop-made
Typical use	Bedrooms, living rooms, dining rooms, halls	Craftsman and shaker rooms	Formal colonial rooms

Old-house restorers point out that applied panels were an interior technique, while exterior features used inset panels; see this applied versus inset panel explainer. Indoors, applied molding is historically correct for many Colonial Revival and later rooms.

For diagonal, framed and asymmetrical feature-wall layouts, browse our Decorative Wall Molding Kits.

How to make applied molding look like real paneling

Copy the parts of a real frame-and-panel wall. The gaps between applied frames stand in for stiles, the gap under the cap stands in for the top rail, and the gap above the baseboard stands in for the bottom rail. Real joinery makes the bottom rail the widest, so the panel looks grounded.

Real paneling part	Applied molding equivalent	Rule
Stile (vertical frame member)	Gap between frames and at ends	3 to 5 in, all equal
Top rail	Gap between frame top and chair rail	2.5 to 3.5 in
Bottom rail	Gap between baseboard and frame bottom	About 1.5 x the top gap
Panel	Wall inside the frame	Horizontal panels below a rail, vertical above
Panel molding	The applied profile itself	1 in on 8 ft walls; 1.6 in on 9 ft and up

The bottom-heavy rule is why many applied wainscots look slightly off: equal gaps top and bottom make the frames appear to float up toward the rail.

Worked example: applied molding wainscot on a 12 ft wall

A 144 in wall, 8 ft ceiling, 4 in baseboard and a 36 in high wainscot with a 1.6 in (4 cm) chair rail. Four frames with 4 in stile gaps come out 31 in wide; with a 3 in top gap and 4.5 in bottom gap they are 22.9 in tall, horizontal panels in classic proportion.

1. Stile gaps: 4 frames need 5 gaps of 4 in = 20 in.
2. Frame width: (144 - 20) / 4 = 31 in (78.7 cm).
3. Rail: top at 36 in, so its bottom edge is at 34.4 in.
4. Frame top: 34.4 - 3 in top gap = 31.4 in.
5. Frame bottom: 4 in baseboard + 4.5 in bottom gap = 8.5 in; frame height 31.4 - 8.5 = 22.9 in (58 cm).
6. Molding: 4 x 2 x (31 + 22.9) = 431 in = 35.9 ft of frame molding, plus 12 ft of rail.
7. Kit: our 4 panel and 4 cm chair rail kit is $127.86 ($129.86 self-adhesive); we size the frames to your wall on request.

Where is applied molding the wrong choice?

Applied molding is wrong where the wall needs protection or where the style calls for true depth. A mudroom bench wall that takes boots and bags needs solid boards or beadboard. A formal room with raised panel doors and deep casings can make thin applied frames look underbuilt, and exteriors are a poor fit for both look and weather.

• Heavy-wear walls: choose solid board and batten in MDF, or add a sturdy chair rail.
• Rooms with very deep casing: use the 40 x 20 mm profile or nested double frames.
• Exterior trim: not suitable for our interior kits.
• Wet zones like shower surrounds: no applied trim; polystyrene is fine elsewhere in a bathroom.

Common mistakes with applied molding

• Equal top and bottom gaps. Frames look like they float. Fix: bottom gap about 1.5 x the top.
• Stile gaps under 2 in. The wall reads as a grid of stickers. Fix: 3 to 5 in.
• Square frames below a rail. Fix: horizontal rectangles below, vertical above.
• Thin profile on a tall wall. Fix: 1.6 in molding on 9 ft ceilings and higher.

Shop the look

• Half Wall Wainscoting Kit with 4 cm Chair Rail: 1 to 6 applied panels with rail, $33.41 to $194.63.
• Half Wall Paneling Kit, 4 Bottom Frames: lower frames only, $115 to $132.
• Double Picture Frame Molding Set: nested frames for extra depth next to heavy casing, from $69.80.

Frequently asked questions

Is applied molding the same as wainscoting?

Applied molding is one way to make wainscoting. When applied frames sit on the lower wall under a chair rail, the result is called picture frame or applied wainscoting.

Applied molding vs panel molding: what is the difference?

Panel molding is the profile, the strip you buy. Applied molding describes how it is used: fixed onto a flat surface. Most applied molding is made from panel molding.

Can you use applied molding on cabinet doors?

Yes, on flat slab doors, with frames inset 2 to 3 in from the edges. Keep polystyrene away from oven heat and use a durable enamel paint.

Is applied molding cheaper than raised panel wainscoting?

Yes. It uses far less material and no joinery; our kits cost a few dollars per linear foot of molding, delivered pre-cut.

Can applied molding go on a ceiling?

Yes. Lightweight polystyrene frames suit ceilings because construction adhesive holds them while it cures; tape or pin until set.
