Tom's Custom Order – Waterproof Colonial Wall Molding Kit + 23 FT Chair Rail

This exclusive custom listing has been prepared for Tom's bathroom renovation project.

The order includes 5 custom-sized waterproof and paintable Colonial-style picture frames, along with approximately 23 linear feet of matching waterproof and paintable chair rail molding, custom-cut according to the customer's confirmed wall measurements.

All frame dimensions are finished outside measurements. Chair rail wall lengths were measured at the chair rail installation line.

📐 CUSTOM FRAME DIMENSIONS

• Wall 1 — 1 Frame: 17" W × 24.9" H

• Wall 3 — 2 Frames: 25" W × 24.9" H each

• Wall 5 — 1 Frame: 27" W × 24.9" H

• Wall 7 — 1 Frame: 22" W × 24.9" H

Total: 5 custom-sized Colonial-style picture frames

All five frames will feature the same traditional Colonial-style profile.

The frame on Wall 7 will be centered within the available open space between the shower frame and vanity.

No picture frames will be installed on Walls 2, 4, 6, or 8.

✨ PRODUCT FEATURES

• 100% waterproof molding material

• Fully paintable surface

• Impact-resistant and resistant to deformation

• Traditional Colonial-style profile

• Suitable for bathrooms and humid environments

• Suitable for a white semi-gloss painted finish

• Precision-cut to approved custom dimensions

• Custom 45° mitered corner preparation

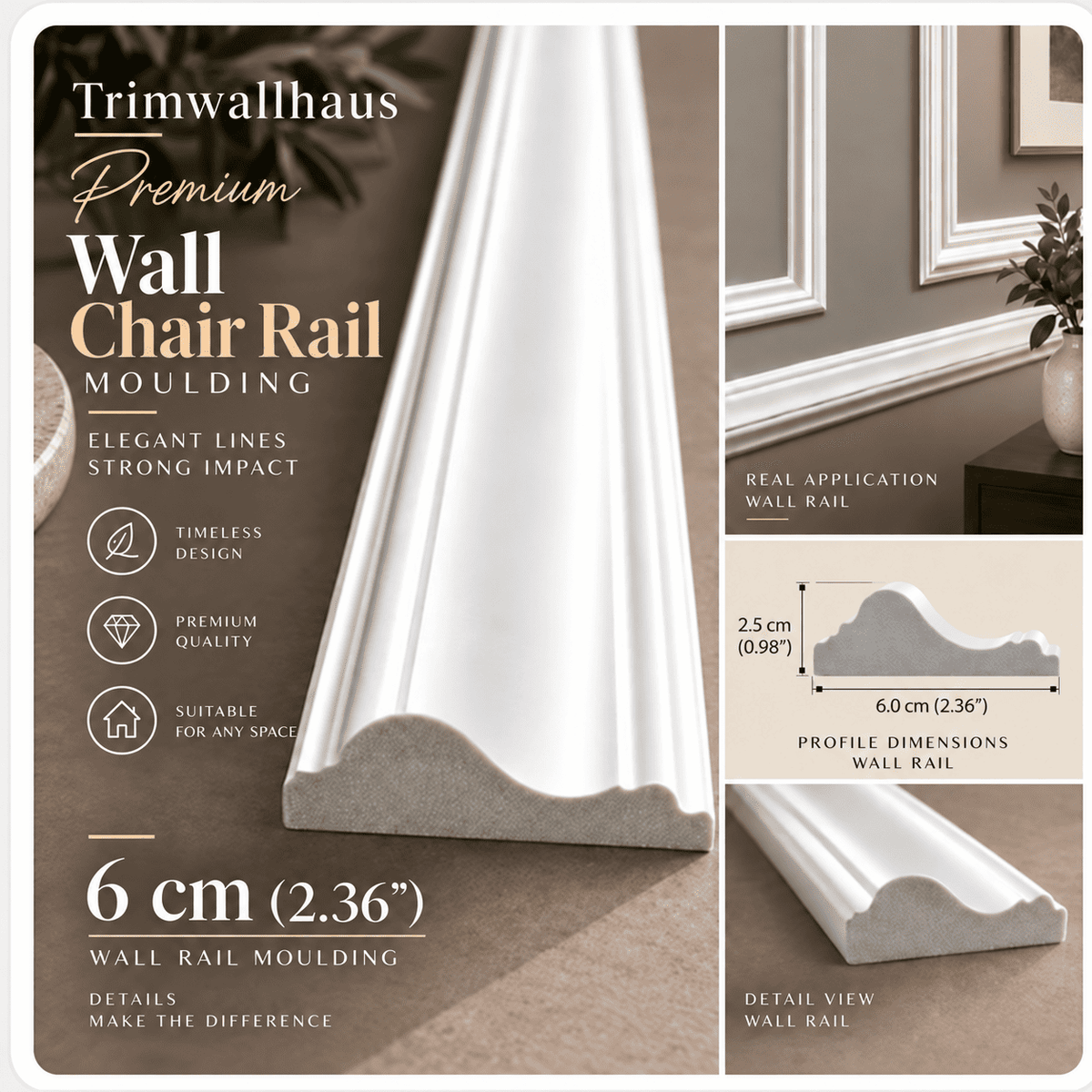

📏 MATCHING CHAIR RAIL

• Profile Width: 2.36" (approximately 2⅜")

• Total Measured Wall Length: 274 9/16" (approximately 22.88 ft)

• Quoted Chair Rail Length: 23 linear feet

• Material: Waterproof and paintable

• Style: Matching decorative chair rail

• Custom Cutting: Included

• Inside and Outside Corner Miter Cuts: Included

• Finished End Cap at Shower Frame: Included

The chair rail will run across all eight wall sections, including sections without picture frames.

CUSTOM CHAIR RAIL CUTTING PLAN

Wall 1 — 25 1/4"

• Left end: Straight cut at door casing

• Right end: 45° inside corner

• Frame: 17" wide

Wall 2 — 3 1/4"

• Left end: 45° inside corner

• Right end: 45° outside corner

• No frame

Wall 3 — 62 1/8"

• Left end: 45° outside corner

• Right end: 45° inside corner

• Frames: Two 25" wide frames

Wall 4 — 41"

• Left end: 45° inside corner

• Right end: 45° inside corner

• No frame — behind toilet and cabinet

Wall 5 — 35 1/2"

• Left end: 45° inside corner

• Right end: 45° outside corner

• Frame: 27" wide

Wall 6 — 4 11/16"

• Left end: 45° outside corner

• Right end: Finished end cap at shower frame

• No frame

Wall 7 — 52"

• Left end: Straight cut at shower frame

• Right end: 45° inside corner

• Frame: 22" wide, centered between shower frame and vanity

Wall 8 — 50 3/4"

• Left end: 45° inside corner

• Right end: Straight cut at door casing

• No frame — chair rail runs above the vanity backsplash

All cutting instructions are based on the customer's submitted measurements. Final cut lengths and miter geometry will be verified before production, including any additional material allowance required for cutting.

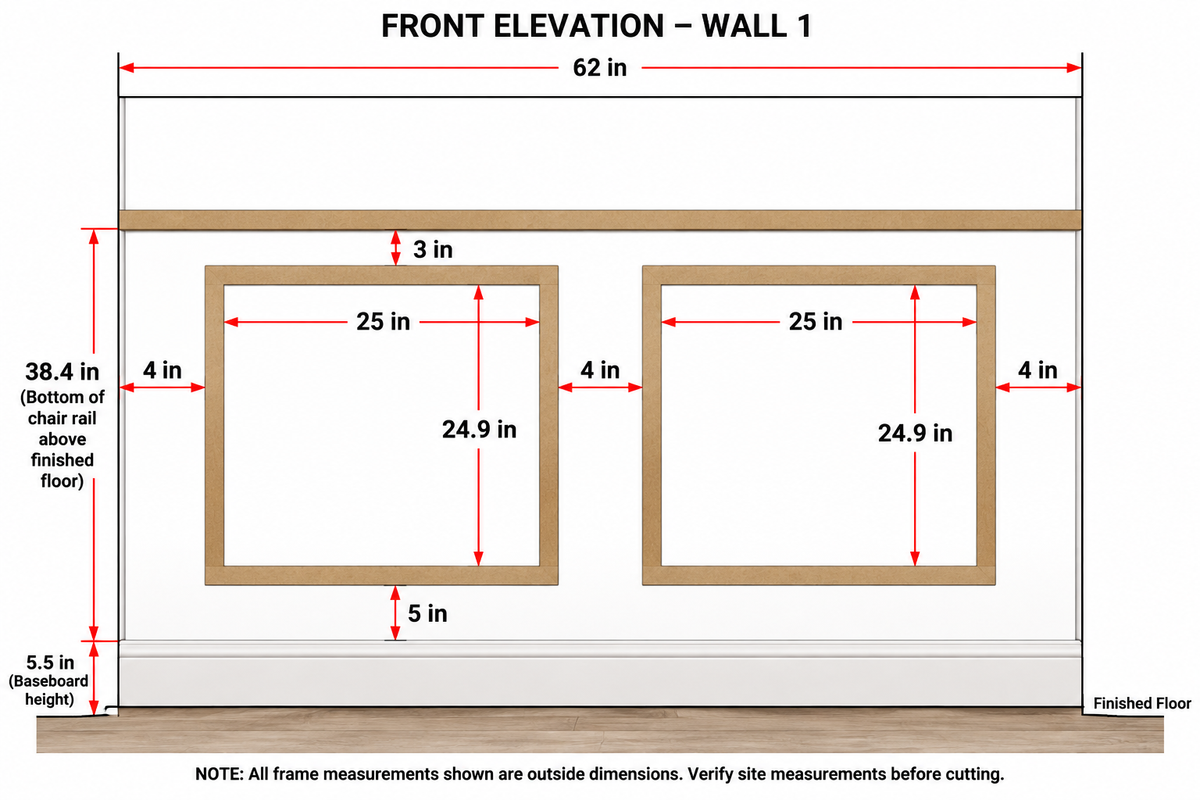

📐 CONFIRMED INSTALLATION DIMENSIONS

• Chair Rail Bottom Edge: 38.4" above finished floor

• Frame Height: 24.9"

• Gap Between Chair Rail and Frame Top: 3"

• Frame Bottom Edge: 10.5" above finished floor

• Existing Baseboard Height: 5.5"

• Clearance Above Baseboard: 5"

The chair rail will align with the existing vanity backsplash.

All five frames will maintain the same vertical positioning throughout the bathroom.

📦 YOUR ORDER INCLUDES

• 5 custom-sized waterproof Colonial-style picture frames

• Approximately 23 linear feet of matching waterproof and paintable chair rail

• Precision-cut molding components

• Custom 45° mitered corner preparation

• Finished chair rail end cap for Wall 6

• Complimentary custom layout assistance

• FREE SHIPPING

💰 YOUR EXCLUSIVE CUSTOM PRICE

5 Custom Waterproof Colonial Frames: $340.00

23 FT Matching Chair Rail with Custom Cutting: $142.31

TOTAL: $482.31 USD

🚚 FREE SHIPPING INCLUDED!

🚚 PRODUCTION & SHIPPING

• Order Preparation: 1–3 days

• Estimated Shipping Transit: 3–4 days

• Estimated Total Delivery Time: 4–7 days

Delivery times are estimates and may vary depending on the shipping carrier.

IMPORTANT – FINAL APPROVAL BEFORE CUTTING

This listing reflects the customer's latest submitted bathroom measurements and cutting instructions.

All five frame sizes, eight chair rail wall sections, corner directions, and the shower-side end cap are documented above.

The final production cutting list will be checked against the approved wall measurements, including miter allowances.

No custom cutting will begin until the final measurements and specifications have been confirmed.

Thank you for choosing Trim Wall Haus!
