Arched Wainscoting: Heights, Panel Counts and Layout

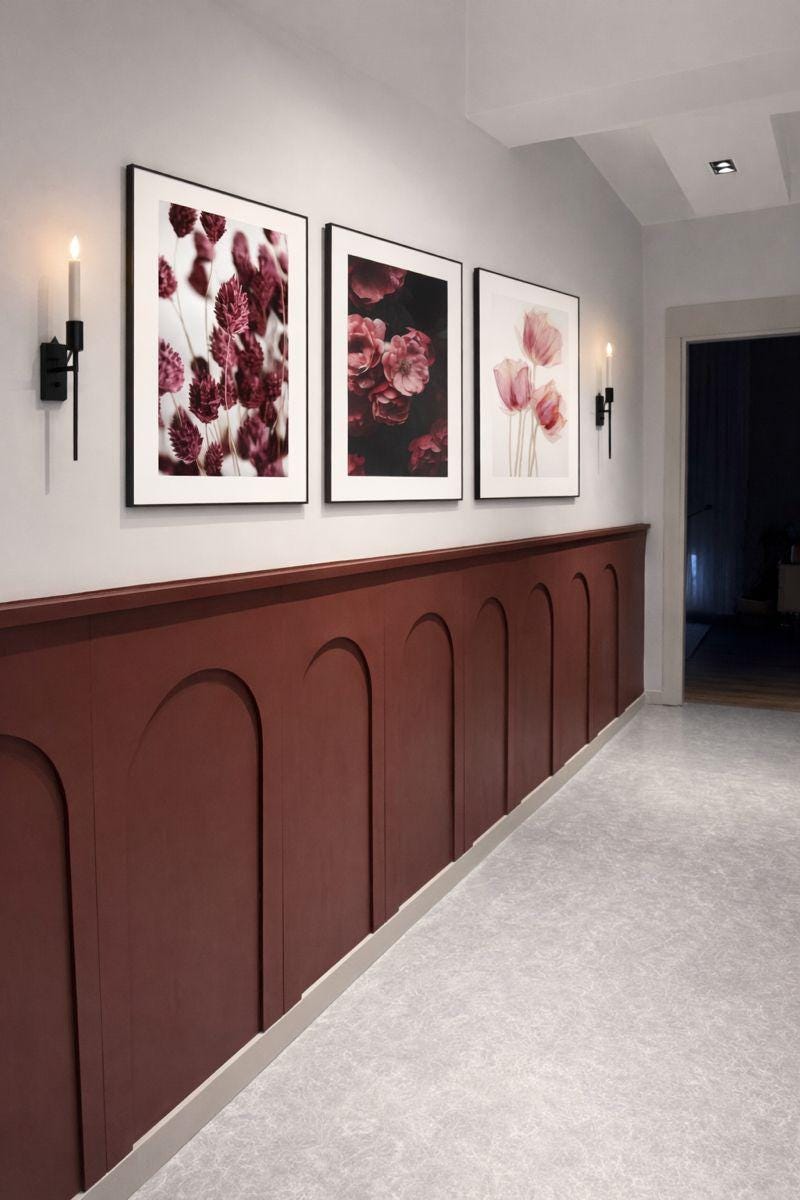

Arched wainscoting replaces the rectangles of classic wainscoting with a row of rounded openings, like a low arcade along the wall. It needs more height than standard wainscoting: our pre-cut panels are 58.3 in (148 cm) tall and 31.5 in (80 cm) wide, so on an 8 ft ceiling they reach about two-thirds of the wall.
Most arched wainscoting inspiration shows the finished arcade and stops there. What it skips is the proportion problem: drop arches into the usual 32 to 36 in wainscot height and they turn into squat half-circles that read like a bridge, not a doorway. You already like the look. This guide explains the height an arch actually needs, how many panels fit across 6 to 16 ft walls, how outlets and furniture interact with the legs, and what it costs. The examples use our arched wainscoting panels in pre-cut MDF.
Quick answer: Make arched wainscoting tall: 55 to 65 percent of the ceiling height, so each opening is about 1.8 times taller than it is wide. Our 31.5 x 58.3 in panels fit 4 across a 12 ft wall with 9 in end margins for $291.40. Below 40 in high, use narrower arches or classic square panels.
Key takeaways
- An arch reads as an arch when its opening is roughly 1.6 to 2 times taller than wide; our panels are 50.4 in tall by 27.6 in wide, a ratio of 1.83.
- At standard 36 in wainscot height, the same 27.6 in opening would only be about 24 in tall, wider than it is high.
- On top of a 4 in baseboard, our panels finish at 62.3 in: 65 percent of an 8 ft wall, 58 percent of 9 ft, 52 percent of 10 ft.
- Adjacent panels form 4 in (10 cm) piers; an outlet behind a 2 in leg must move or the layout must shift.
- Arched MDF panels are for dry rooms; in bathrooms, use polystyrene square frames instead.
What is arched wainscoting, and how is it built?
Arched wainscoting is a wainscot made of repeated arch-topped openings joined by a solid band along the top. In our version each panel is three pieces of pre-cut MDF: one arch top section and two straight legs. Panels butt together side by side, so the legs of neighbors form slim piers between the arches.
| Dimension (per panel) | Metric | Imperial |
|---|---|---|
| Panel width | 80 cm | 31.5 in |
| Panel height | 148 cm | 58.3 in |
| Arch opening width | 70 cm | 27.6 in |
| Opening height (floor of panel to arch top) | 128 cm | 50.4 in |
| Solid band above arch | 20 cm | 7.9 in |
| Leg width | 5 cm each, 10 cm where panels meet | 2 in each, 4 in pier |
| Arch top piece / legs | 68 cm / 80 cm tall | 26.8 in / 31.5 in |
Two panels make a 160 cm (63 in) run and three make 240 cm (94.5 in), all at the same 148 cm height. The wall shows through each opening, which is what gives the arcade its depth when the panel and wall are painted in different tones.
How high should arched wainscoting be?
Higher than regular wainscoting. Standard wainscoting sits at about one-third of the ceiling height (32 in on an 8 ft ceiling), but an arch needs vertical room for its curve plus a straight run below it. Aim for 55 to 65 percent of the ceiling height, which on most walls means 55 to 65 in.
The reason is geometry. A round-topped opening 27.6 in wide has a 13.8 in curve. At 36 in total height, after a 4 in baseboard and a 7.9 in top band, the opening would be just 24.1 in tall: wider than it is high, with legs only 10.3 in tall below the curve. That proportion reads as a bridge. Our panel's 50.4 in opening gives a 1.83 height-to-width ratio, close to a doorway.
| Ceiling | Top of panel, on floor | Top of panel, on 4 in baseboard | Share of wall height |
|---|---|---|---|
| 8 ft (96 in) | 58.3 in (148 cm) | 62.3 in (158 cm) | 61 to 65 percent |
| 9 ft (108 in) | 58.3 in | 62.3 in | 54 to 58 percent |
| 10 ft (120 in) | 58.3 in | 62.3 in | 49 to 52 percent |
Caveat: on a 10 ft ceiling the panels sit at about half height, which looks deliberate but leaves a tall plain wall above. Add a picture rail or a painted color break, or ask us for taller custom panels. For general wainscot heights by ceiling, see how high wainscoting should be.
How many arched panels fit on your wall?
Divide the wall width by 31.5 in, round down, and center the run so the leftover splits into two equal end margins. Keep each end margin at least 4 in, the same as the piers, or the run looks jammed into the corner. If the margin falls under 4 in, drop one panel.
| Wall width | Panels | Run length | Each end margin | Kit price |
|---|---|---|---|---|
| 6 ft (72 in) | 2 | 63 in (160 cm) | 4.5 in (11 cm) | $146.60 |
| 8 ft (96 in) | 2 (or 3 corner to corner) | 63 in / 94.5 in | 16.5 in / 0.75 in | $146.60 / $214.41 |
| 10 ft (120 in) | 3 | 94.5 in (240 cm) | 12.8 in (32 cm) | $214.41 |
| 12 ft (144 in) | 4 | 126 in (320 cm) | 9.0 in (23 cm) | $291.40 |
| 14 ft (168 in) | 5 | 157.5 in (400 cm) | 5.2 in (13 cm) | $365.60 |
| 16 ft (192 in) | 5 | 157.5 in (400 cm) | 17.2 in (44 cm) | $365.60 |
On an 8 ft wall you can run three panels corner to corner, which works when both corners are true; otherwise two centered panels with wide margins look calmer. For long walls over 16 ft, order more panels as two kits, or send the wall width for a custom run.
Worked example: a 12 ft dining room wall
A 12 ft (144 in) wall with an 8 ft ceiling and a 4 in baseboard takes four panels in a 126 in run with 9 in end margins. The top of the arcade lands at 62.3 in, the opening centers fall every 31.5 in, and the kit costs $291.40 before the WALL20 code.
- Panels: 144 / 31.5 = 4.57, so 4 panels.
- End margins: (144 - 126) / 2 = 9.0 in (22.9 cm) each side.
- Height: panels stand on the 4 in baseboard, so the top band ends at 62.3 in (158 cm), 65 percent of the wall.
- Opening centers: 9 + 15.75 = 24.75 in from the left corner, then every 31.5 in: 24.75, 56.25, 87.75 and 119.25 in.
- Leg and pier positions: legs at 9 to 11 in, piers at 38.5 to 42.5, 70 to 74 and 101.5 to 105.5 in, last leg at 133 to 135 in.
- Outlet check: any outlet whose plate (2.75 in wide in the US) overlaps one of those leg or pier ranges must move, or shift the whole run up to 4 in sideways.
- Cost: $291.40 for 4 panels, $271.40 with WALL20, shipped free.
Dining chairs: measure the height of your chair backs. If they stand above about 36 in they will cover the lower half of the openings, which is fine, but push the table toward the arches and the backs will rub the legs. Leave at least 6 in between pushed-in chairs and the wall.
How do you install arched wainscoting?
Mark a level line for the top band and a center line for each arch, dry-fit the legs and arch top together, then glue with construction adhesive and tape until cured. Our panels arrive cut to radius and numbered, so there is no bending or saw work. A 4-panel wall is a one-day job for two people.
- Paint the wall first in the color that will show inside the arches.
- Snap a level line at the top-of-panel height (62.3 in over a 4 in baseboard) and mark each panel's center line.
- Dry-fit each arch top on its legs on the floor so the joints close; note any tight joint before glue goes on.
- Prime all cut MDF edges. Raw edges absorb paint and look patchy.
- Glue the legs first, plumb, then the arch top on them, working from the center panel outward.
- Tape until the adhesive cures, then fill the leg-to-arch joints, caulk all edges and sand smooth.
- Paint the panels. Keep the room above 50 F (10 C) for the adhesive, filler and caulk to cure properly.
Pro tips
- Paint the panels one or two shades darker than the wall inside the openings; the arches then read as recesses, not cut-outs.
- Center the arcade on the room's focal point (a sideboard, a window, the dining table), not on the wall, if the two are different.
- Run a laser along the top band before gluing the last panel. A 1/8 in step between panels is very visible on a long straight band.
- Put sconces on the piers, not inside the arches; the arch top frames the light and the cable stays inside a solid zone.
- Check the floor with a level first. If it drops more than 1/4 in across the wall, set the panels to the top line and caulk the gap at the bottom.
- Do one test wall before committing to a whole room; arched wainscoting on four walls can feel busy in rooms under 12 x 12 ft.
Common mistakes with arched wainscoting
- Using standard 32 to 36 in wainscot height. The arches flatten into half-circles. Fix: go tall, or use narrower arches.
- A leg over an outlet. Fix: plot outlet centers against leg and pier positions before ordering, and shift the run.
- End margins under 4 in. The run looks forced into the corners. Fix: drop a panel and center the rest.
- MDF in a wet bathroom. MDF swells where water sits. Fix: use polystyrene square frames in bathrooms.
Shop the look
- MDF Arched Wall Molding Kit: arched frames 56, 76 or 96 cm wide for the wall above or a full-height arcade, from $58.40 per panel.
- U-Shaped Arch Wall Trim Kit: 70 x 135 cm or 96 x 148 cm arches, a slimmer outline in the same heights, from $81.40.
- Curved Arched Wall Molding: a single arch kit for one focal panel, $145.
Frequently asked questions
How high should arched wainscoting be?
About 55 to 65 percent of the ceiling height. Our panels are 58.3 in tall, which puts the top at 62.3 in over a 4 in baseboard, about two-thirds of an 8 ft wall.
Can you do wainscoting with arches?
Yes. Pre-cut arch panels replace the rectangles of classic wainscoting. They need more height than standard wainscoting so each opening stays taller than it is wide.
Do you need a chair rail with arched wainscoting?
No. The solid band above the arches already acts as the cap. A thin ledge on top is optional if you want a place for small frames.
Is arched wainscoting hard to install?
Not with pre-cut panels: the curves arrive machined to radius, so the work is marking, gluing, filling and painting. The critical step is a perfectly level top line.
What color works for arched wainscoting?
Either one tone throughout for a quiet, built-in look, or the panels slightly darker than the wall showing through the arches, which makes the openings read as recesses.
Can arched wainscoting go in a bathroom?
Not in MDF where water splashes or steam lingers. In bathrooms, use moisture-resistant polystyrene square frames and keep arches to dry rooms.
